In a recent article from Modern Machine Shop, Senior Editor, Julia Hider highlighted a groundbreaking advancement in Swiss-type machining. Swiss-type machines are champions of efficiency and versatility in precision manufacturing. These machines have long been admired for their ability to handle intricate parts with unparalleled accuracy. Among the leading innovators in this field, Nomura DS has recently made waves with its groundbreaking NN-20J3XBTC model, especially noted for its unique dual B-axis feature.

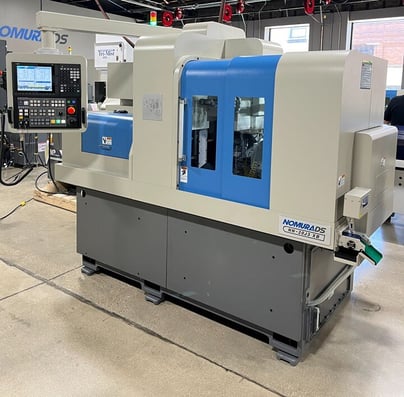

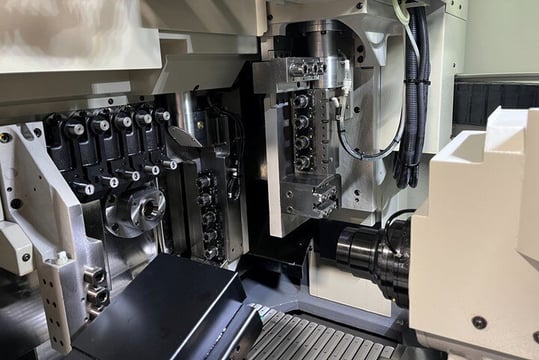

Photos by Julia Hider, MMS.
Swiss-type machines represent a pinnacle in the machining industry, renowned for their ability to produce complex parts with high precision. These machines excel in applications requiring tight tolerances and intricate geometries, making them top-performers in a variety of industries ranging from aerospace to medical device manufacturing.
The Dual B-Axis Advantage
Nomura DS has elevated the standards with its NN-20J3XBTC, integrating a dual B-axis configuration redefines what Swiss-type machining can achieve. This innovative design opens up new possibilities by allowing simultaneous machining operations on both spindles, significantly boosting efficiency and expanding the complexity of parts that can be manufactured.
The Impact of a Second B-Axis
The second B-axis on the NN-20J3XBTC significantly enhances machining efficiency and expands part capabilities for Swiss-type machining. The introduction of a second B-axis marks a pivotal advancement in Swiss-type machining technology, offering numerous benefits. Increased machining capacity and flexibility enable simultaneous machining on both spindles, reducing cycle times and enhancing overall throughput. Additionally, the ability to handle more complex parts, previously challenging or impossible, is now attainable! Improved efficiency is achieved by balancing workload between spindles, eliminating secondary operations, and reducing setup times. Enhanced part quality is ensured through improved stability and optimized cutting conditions, resulting in superior part finishes and extended tool life.
Features of the NN-20J3XBTC
The Nomura DS NN-20J3XBTC distinguishes itself with several key features, including a fully programmable second B-axis offering complete control. Dual support for B-axes enhances stability crucial for maintaining precision in complex operations, while a solid machine base, dovetail slides, and advanced cooling system ensure durability, accuracy, and thermal stability essential for high-precision machining.
The Nomura DS Difference
Modern Machine Shop recently highlighted real-world examples demonstrating the NN-20J3XBTC’s exceptional capabilities. The machine’s dual B-axis technology has revolutionized production processes by significantly reducing lead times and enabling the ability to manufacture previously complex parts. This is demonstrated by a customer who transitioned from a traditional lathe, experiencing a cycle time reduction from six minutes to under one minute. Coupled with Nomura DS’s innovative Micro Vibration Technology (MVT), which improves tool life by creating air-cutting zones to break up chips and reduce heat, the NN-20J3XBTC delivers unparalleled efficiency and performance.
Setting A New Standard
In summary, Nomura DS’s NN-20J3XBTC with its dual B-axis configuration represents a pivotal shift in Swiss-type machining technology. By enhancing efficiency, expanding part capabilities, and improving overall machining quality, this machine is poised to redefine standards within the manufacturing industry. These advancements introduced by Nomura DS are expected to set new benchmarks in precision manufacturing. The ability to handle more complex parts with higher efficiency and reliability will undoubtedly catalyze innovation across various sectors, driving productivity and competitiveness. Check out Modern Machine Shop's full article here!
